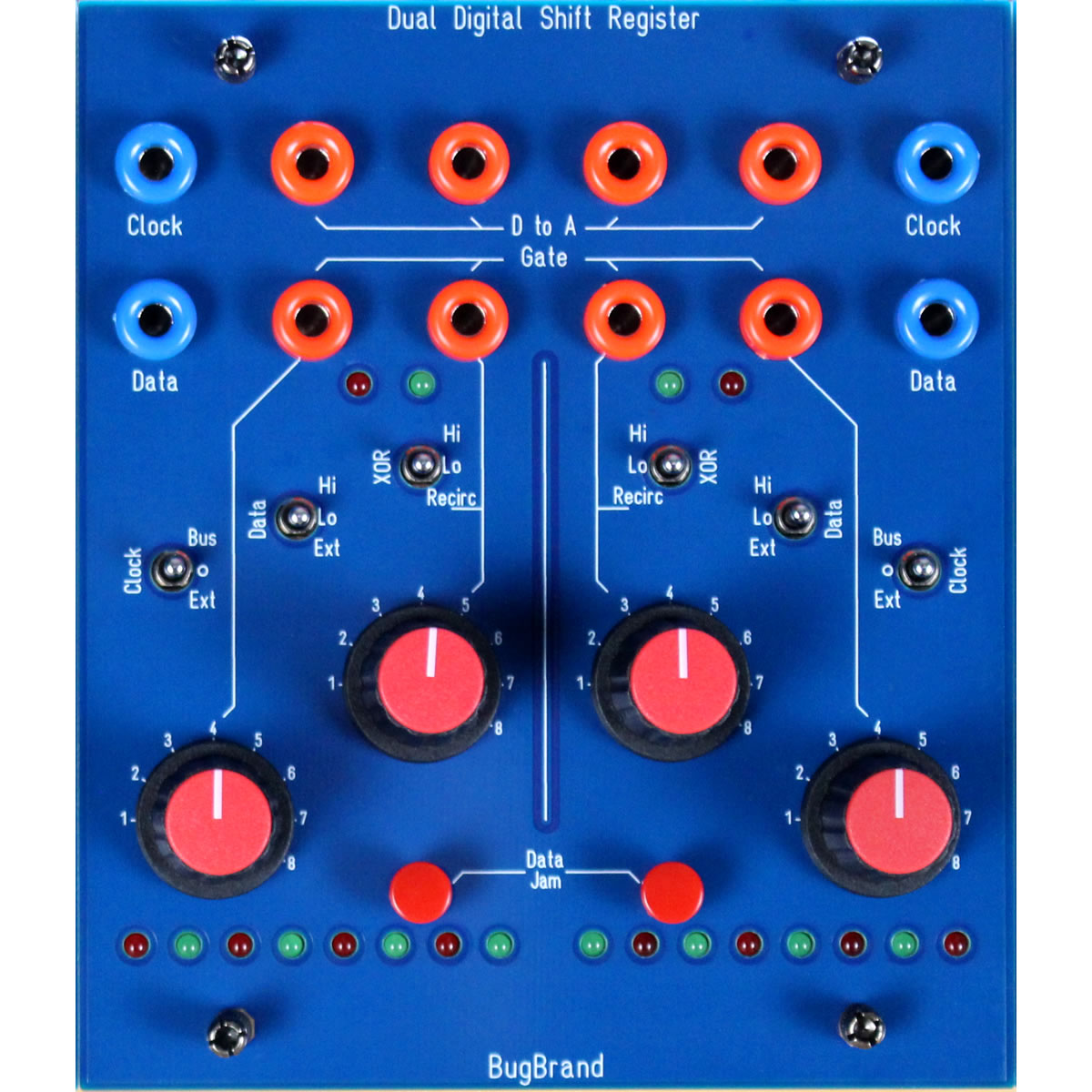

The Dual Digital Shift Register (DDSR) Module was due to form part of a pre-configured ClockBox Frame. It finds great favour in other setups as a rhythmic generator, signal processor and stepped waveform generator.
It features two indentical-but-mirrored 8 stage data arrays which are clocked & filled with data (including by recirculation).
Each side has two data tap gate outputs and two Digital-to-Analogue stepped waveform generators.
It can take time to get one’s head around the functions of this module and, even when understood, it still surprises!
DDSR Instructions PDF (contains several patch examples)
Current: +ve 55mA, -ve 20mA
