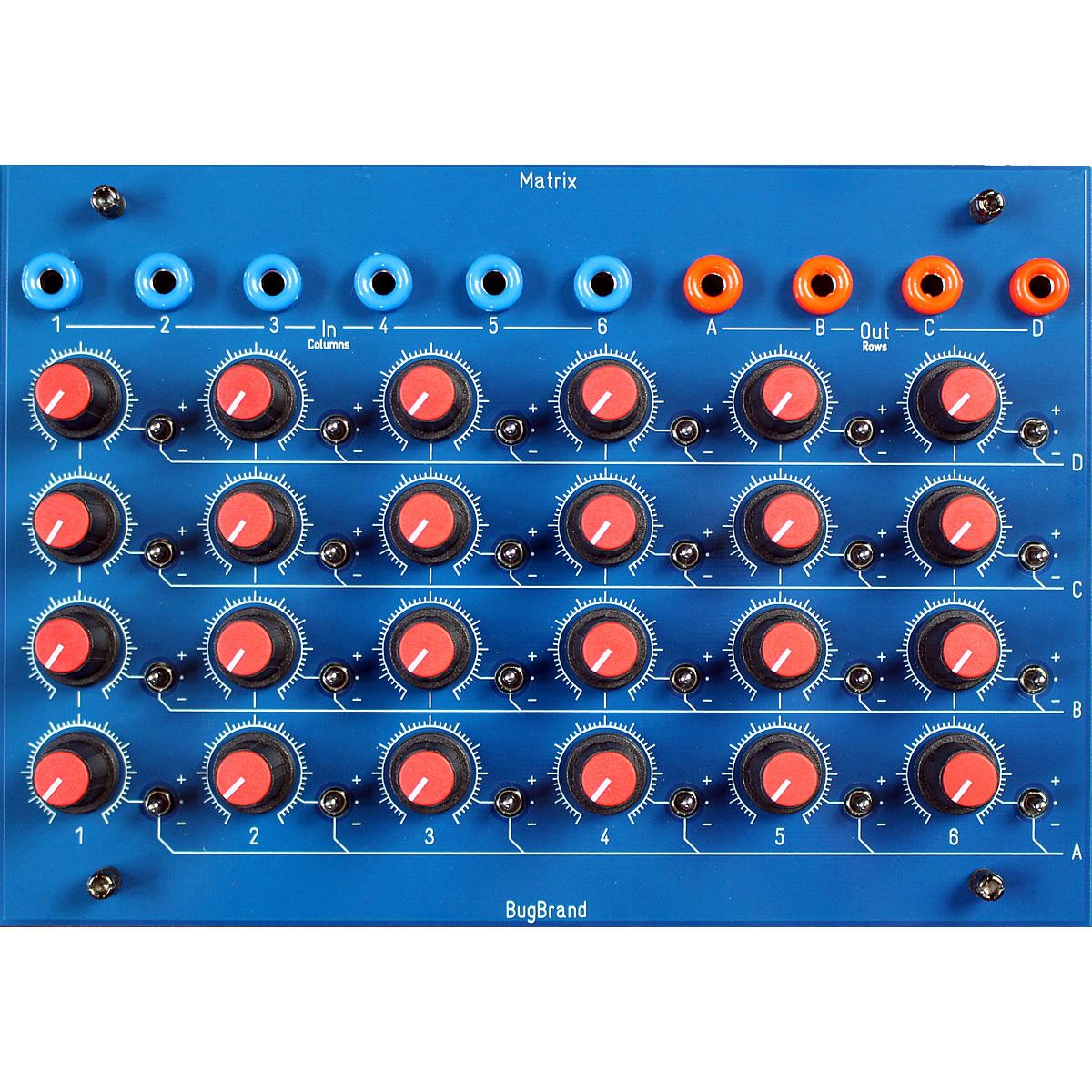

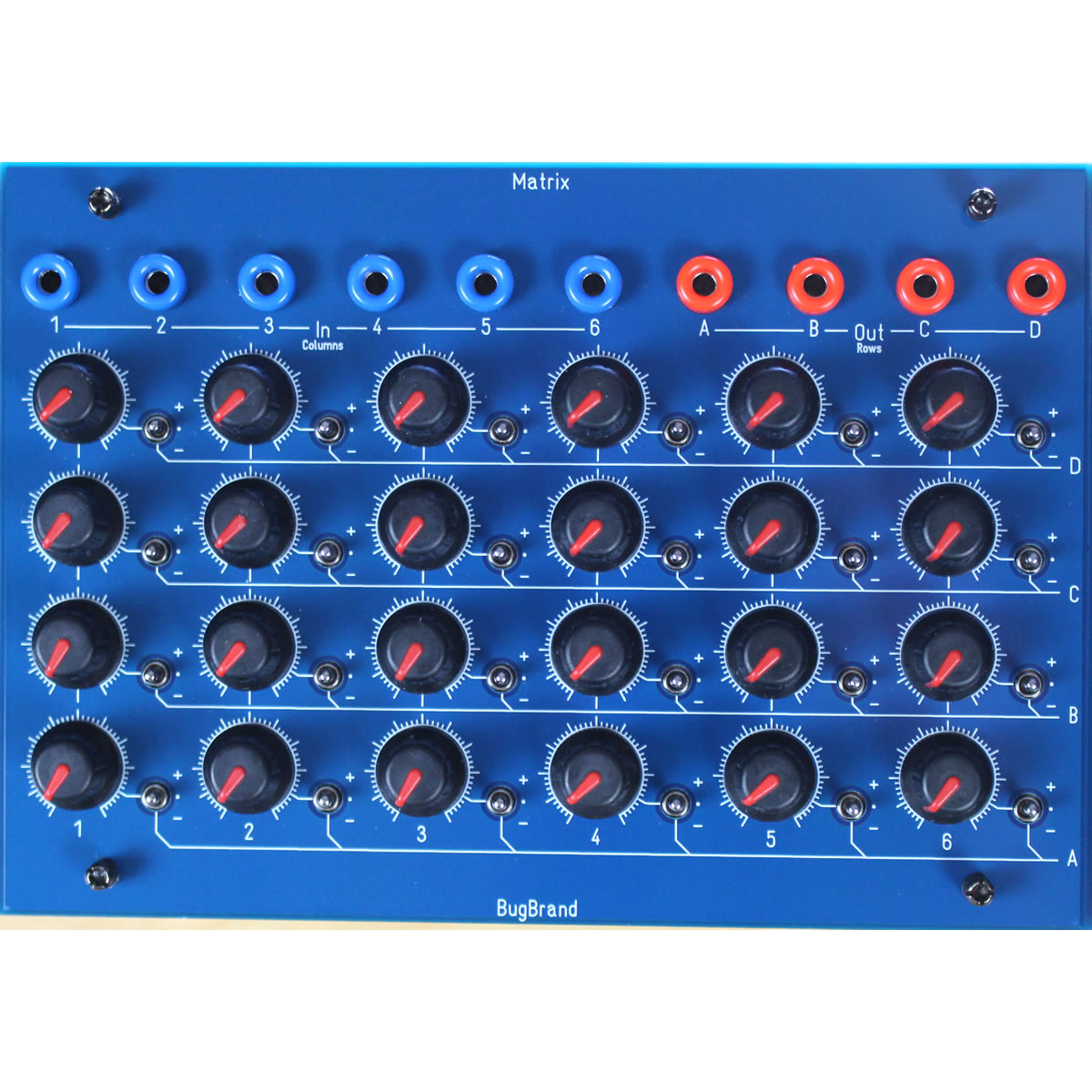

A Matrix Mixer with 6 inputs (columns) feeding 4 outputs (rows).
DC-coupled throughout, with quality opamps & 0.1% resistors for accuracy.
Each mix has a polarity/mute switch – up for normal, mid for mute, down for invert.
Available as regular module or cased/standalone in a 5FW case.
Current: +ve 30mA, -ve 30mA
