Powered Frame – 11FW

£165.00 (Incl. VAT : £198.00)

Case to hold 11FW of modules.

Email order only

Category: Tag:


Special Order Only – contact me!

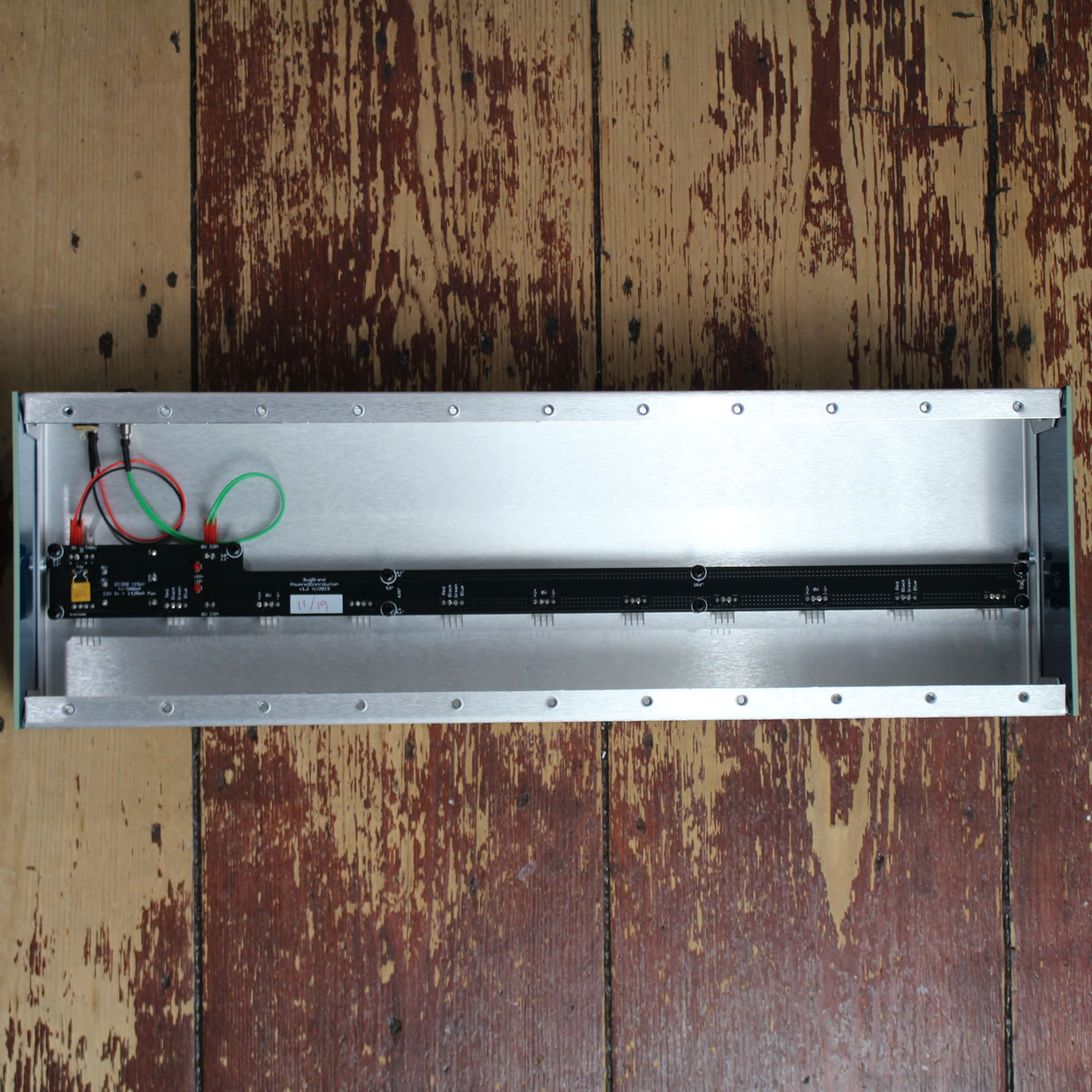

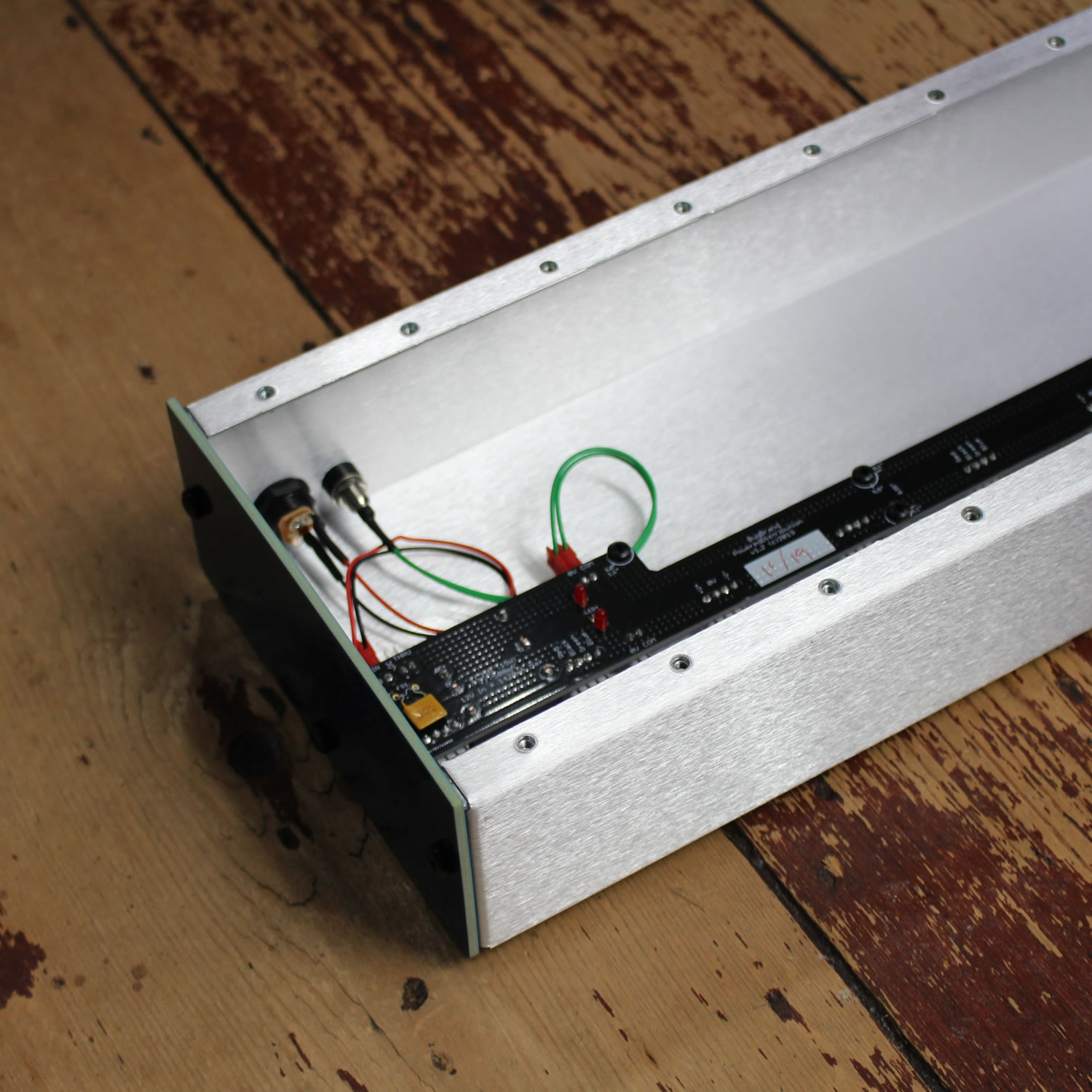

An optional Frame to hold several Red and/or Blue modules in a more convenient form with single power entry.
Offers 11FW (Frac Width) with 500mA per side bipolar power (+/-15V).

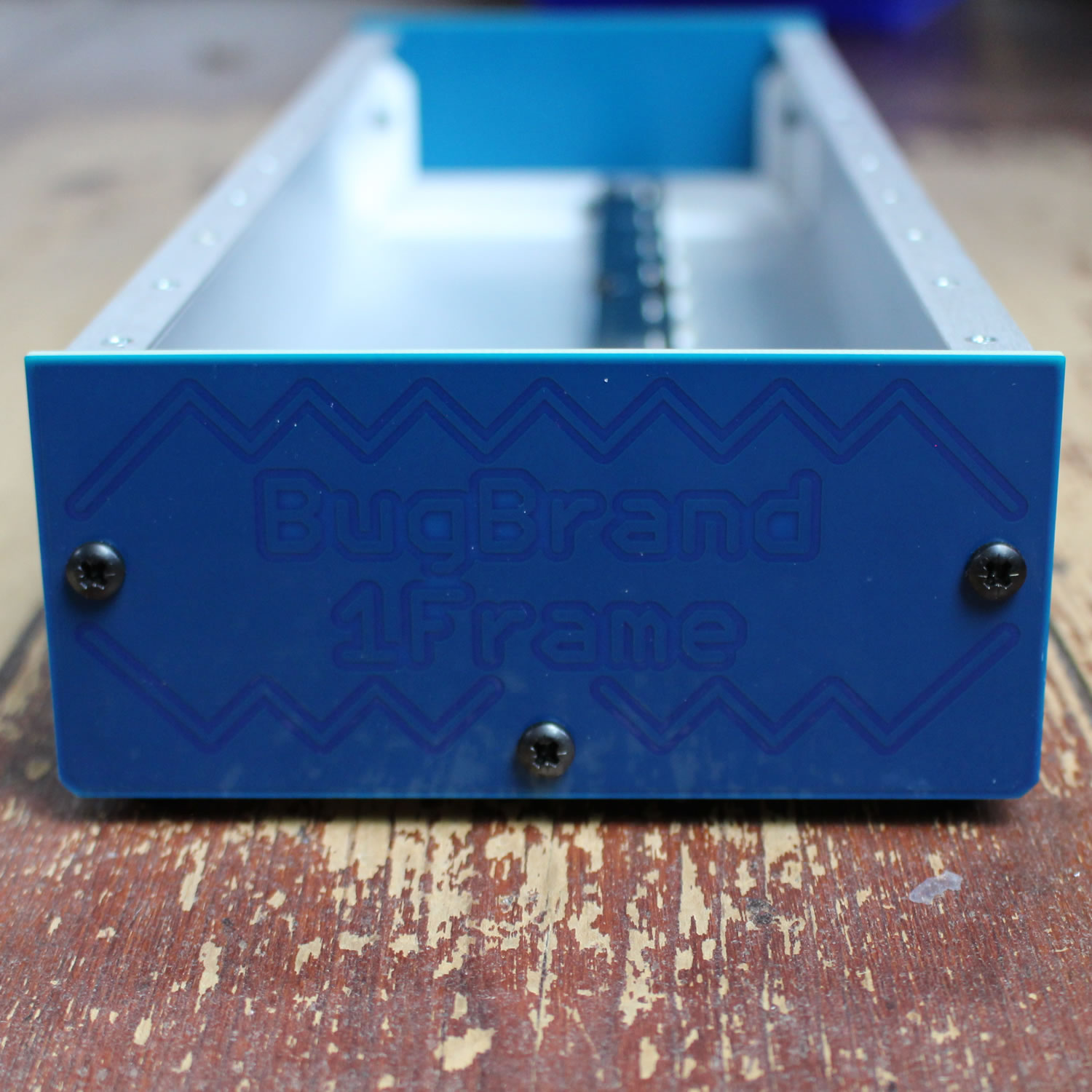

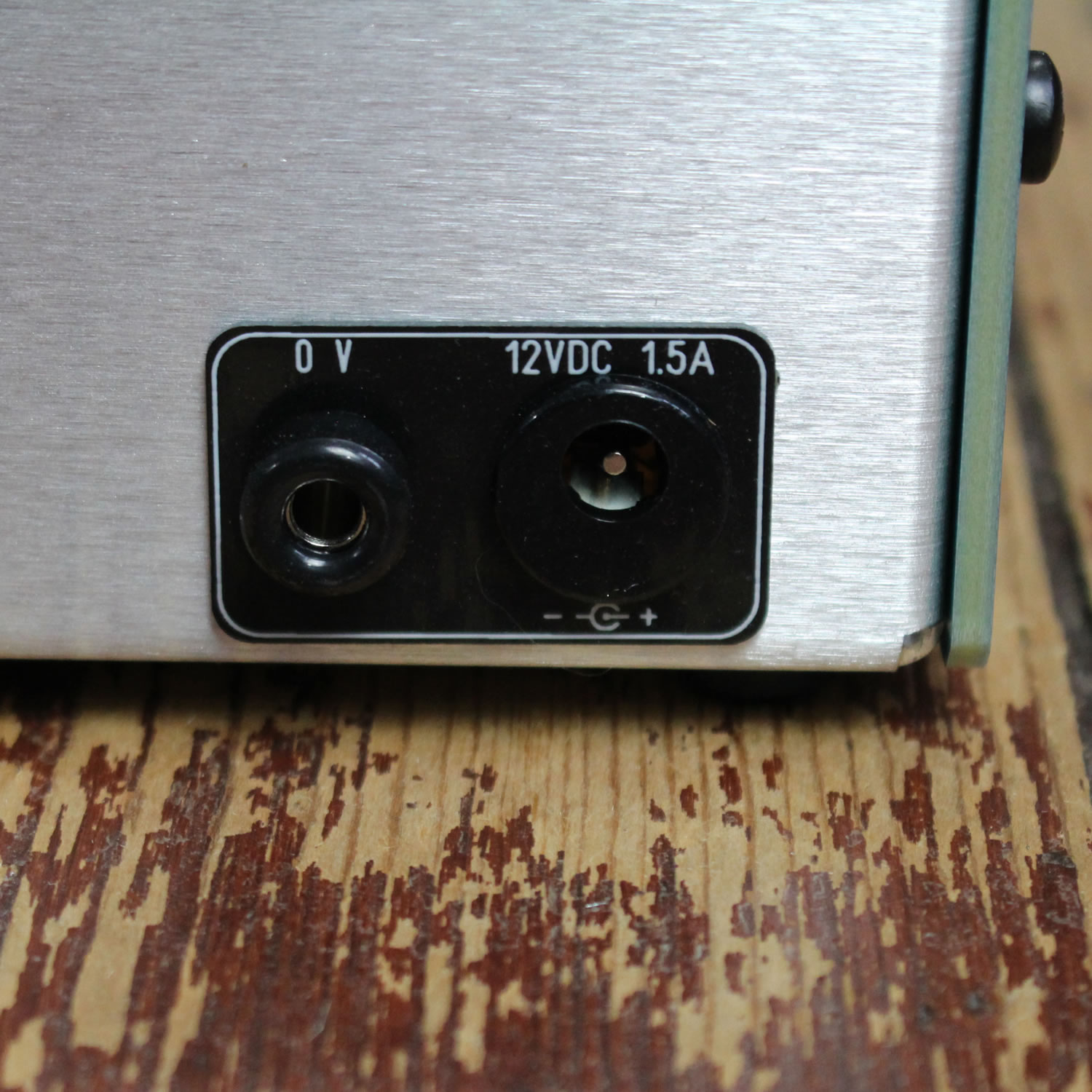

These can be made for desktop use with either red or blue end-cheeks – DC Input & 0V socket on the back/left.
Also available with 19″ rack mount cheeks – in this case the DC/0V are moved to the rear.

Can be further expanded to a 2Frame setup with simple changes to cabling & end-cheeks – providing a convenient holder for multiple modules, powered from a single (supplied) worldwide 12VDC PSU [1.5A per row] – highly portable!
See the Joining Frames Overview PDF

Note that it is not ideal for powering ‘Old Blue’ Modules – they ‘work’ but there can be unwanted interaction gremlins.
Red devices can easily be taken from their existing frames – simply unscrew the four panel bolts, disconnect the MTA100 power cable and insert in the new Frame.
I can not currently offer to take back old smaller frames, but can always offer Red devices as uncased modules.

Priced £165+Shipping+VAT per Frame.

Additional information

Weight 1 kg
