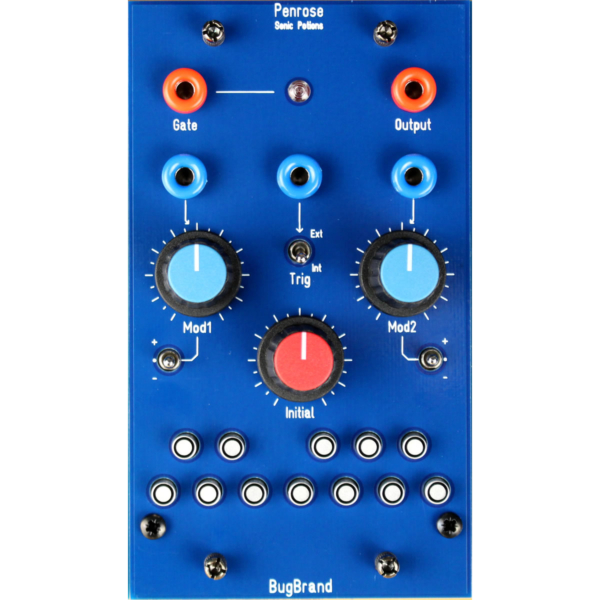

My version of the Sonic Potions Penrose Quantizer – an open-source project where input signals are quantized to a scale selected by the keyboard buttons on the front. An Initial (manual/offset) control has been added along with a 2 channel DC input mixer – opening up the play and modulation of the design. The action can either be free-running, updating whenever a CV change occurs, or externally triggered (eg. like a sample & hold).
Range – 0V to +10V (10 Octaves)
Design files here.
Current: +ve 70mA, -ve 10mA
