WorkshopCrusher [Archive]

Description

This was made for workshops & then also sold by the Thonk webshop – long gone now.

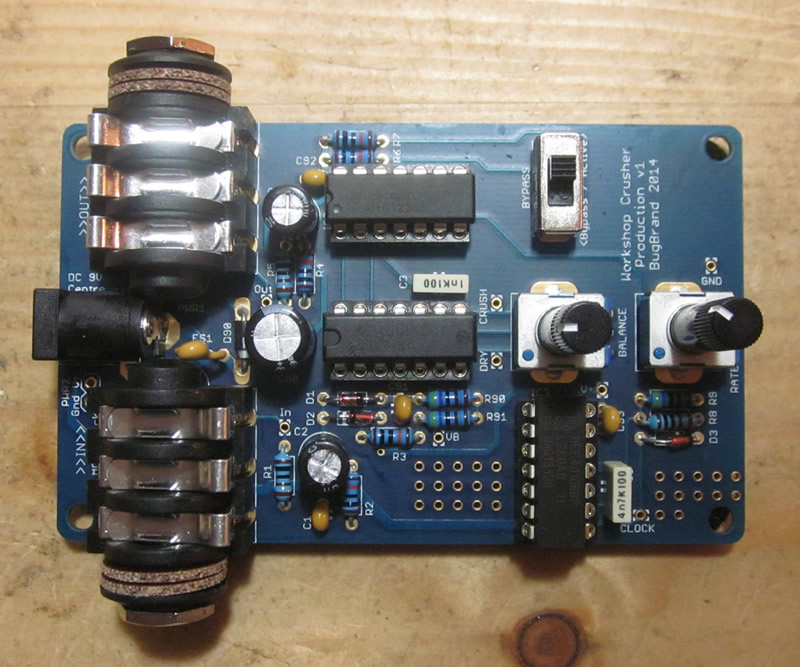

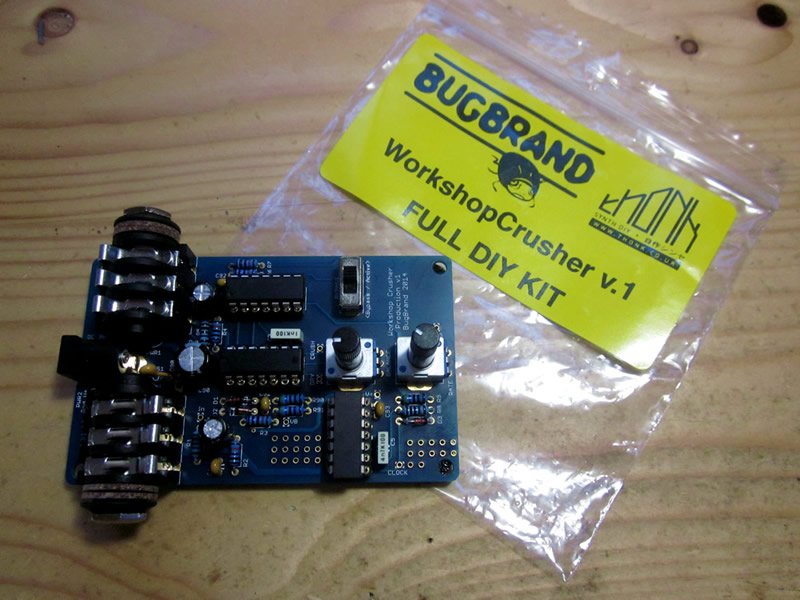

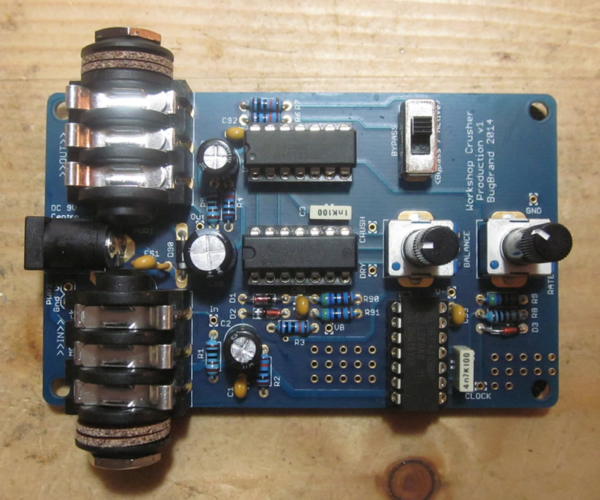

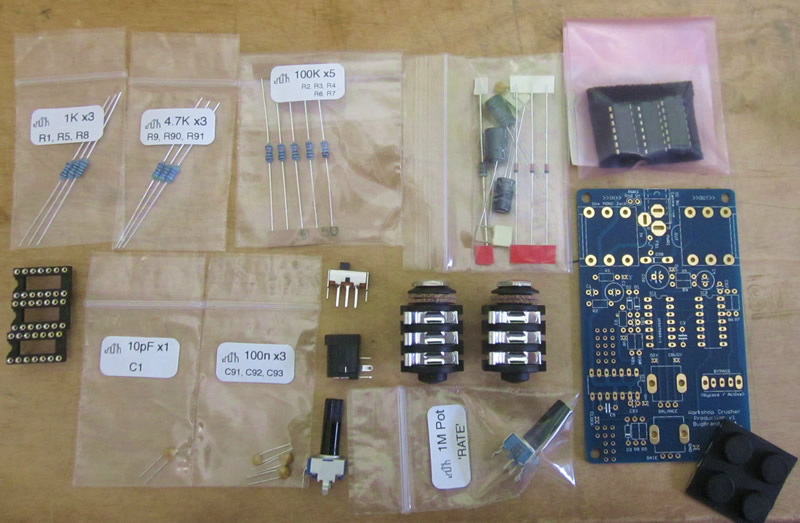

The WorkshopCrusher was designed as an introduction to analogue audio electronics – it is a complete DIY kit allowing you to build an Analogue Sample-Rate Reducer (very similar to my old MicroCrusher design) while also gaining some insight into building and electronic techniques. All parts are provided and only minimal tools are required – Soldering Iron (+ stand, solder, cleaner) and wire-snips.

The kit is only available at BugBrand workshop events or from Thonk (I do not have any kits for sale direct)

Full documentation – WorkshopCrusher Full Documentation PDF
Including – overview of the kit & components // how to solder // building guide // circuit analysis // Schematic

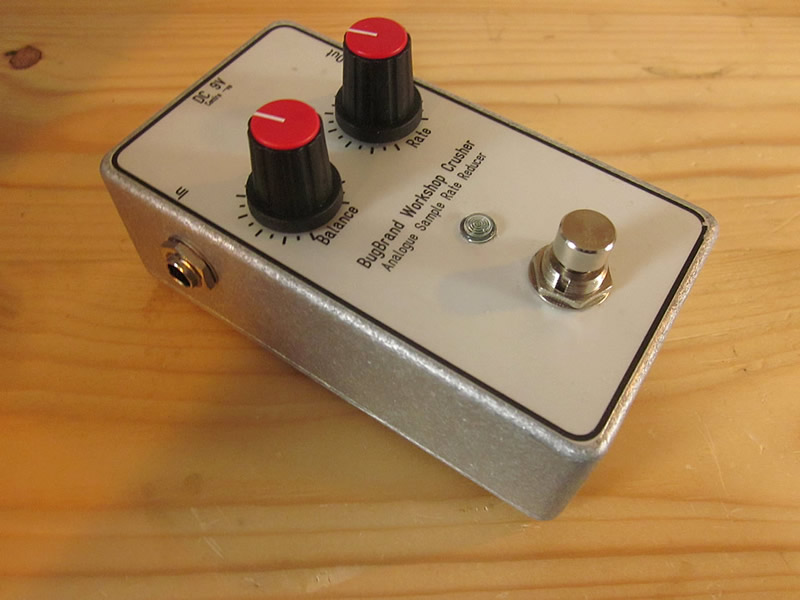

How to make a pedal version – Boxing Doc PDF

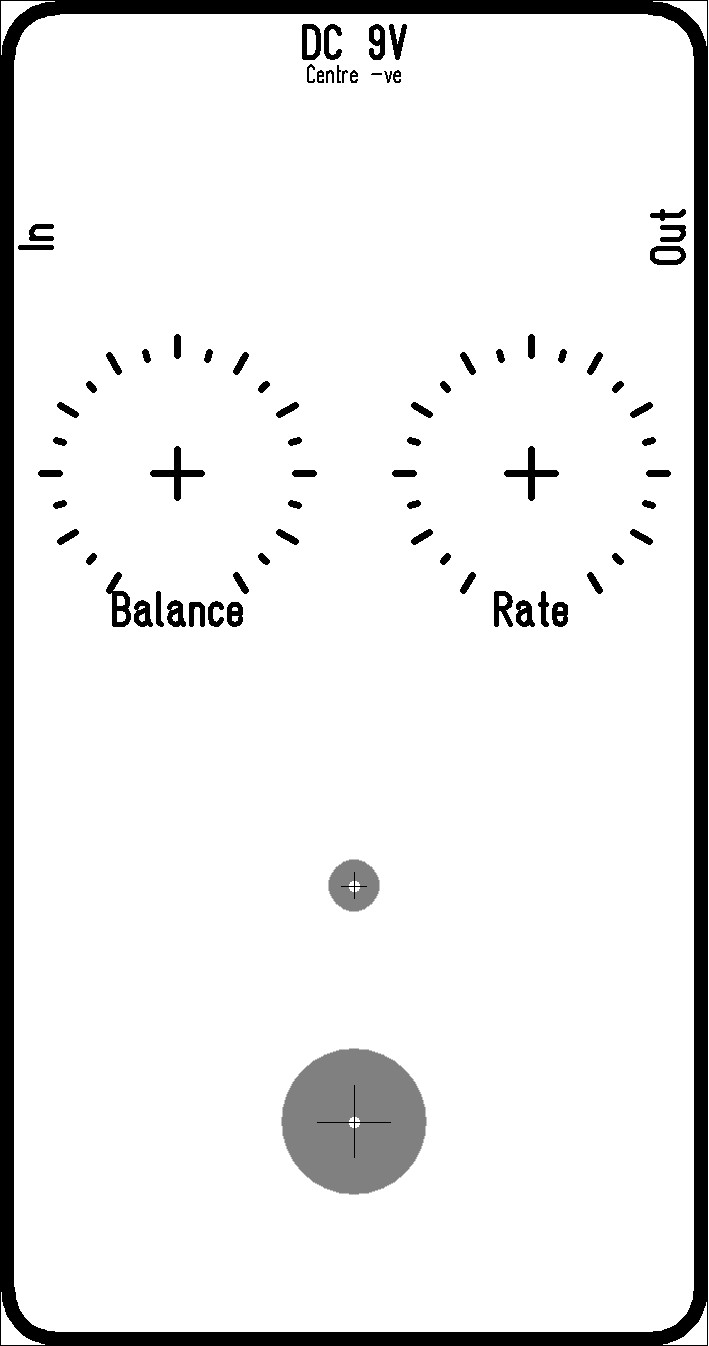

Plus the pedal template image – Image

There is a Build Thread for discussion hosted here on MuffWiggler for any questions or comments
