Logic

£140.00 (Incl. VAT : £168.00)

A little logical toolbox

In stock

Category: Tags: ,

Description

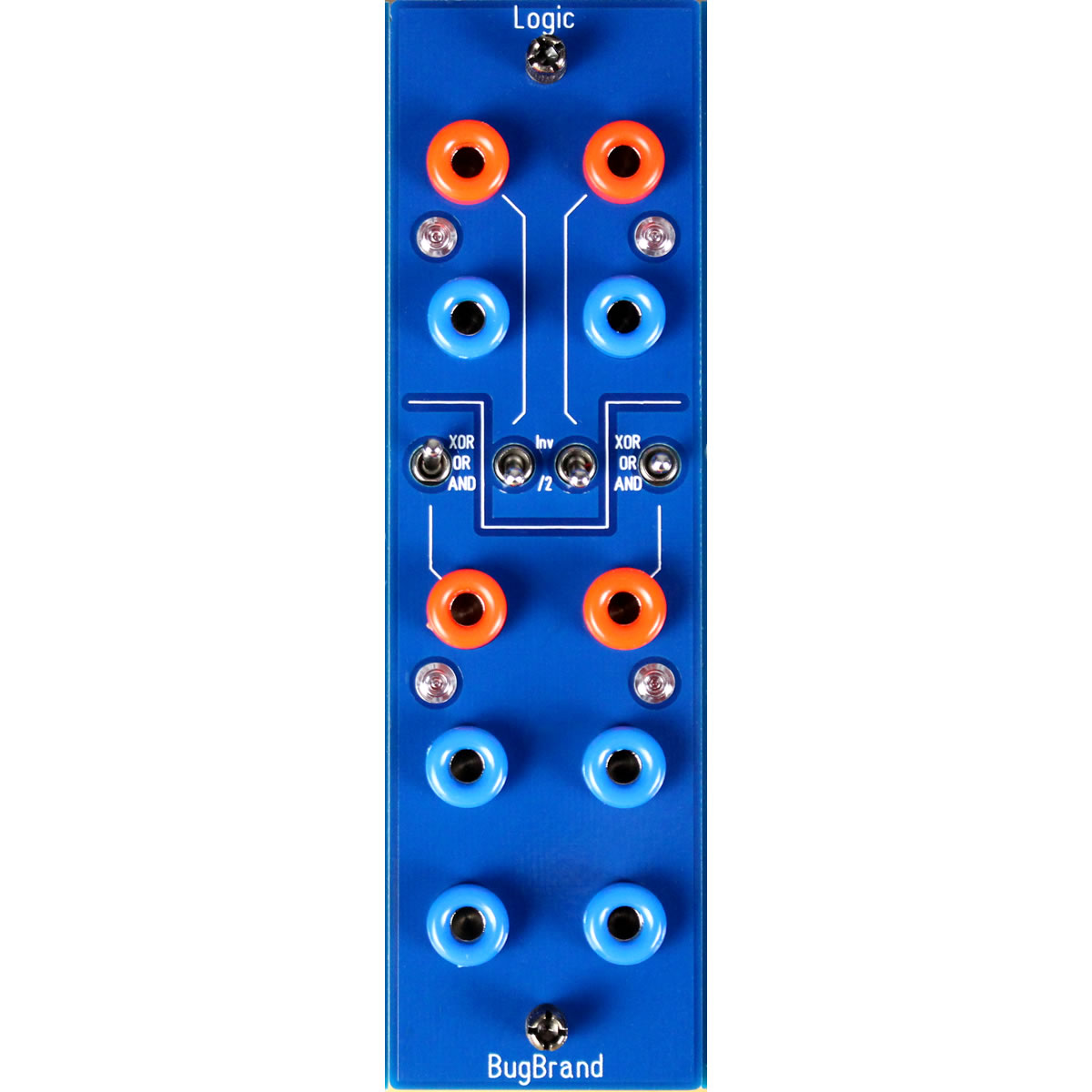

The Logic module features four utility processors for clock/gate signals.

At the top are two single input processors which can each be set to either invert or divide by two (flip-flop).

Underneath are two twin input logic gates offering AND, OR or XOR responses as shown below:

In 1 In 2 AND OR XOR
0 0 0 0 0
1 0 0 1 1
0 1 0 1 1
1 1 1 1 0

All inputs pass through comparators with threshold c.+1V and can be run at audio rates.
Outputs are 0V low, c.+10V high.


Size: 1FW
Current: +ve 30mA, -ve 0mA
