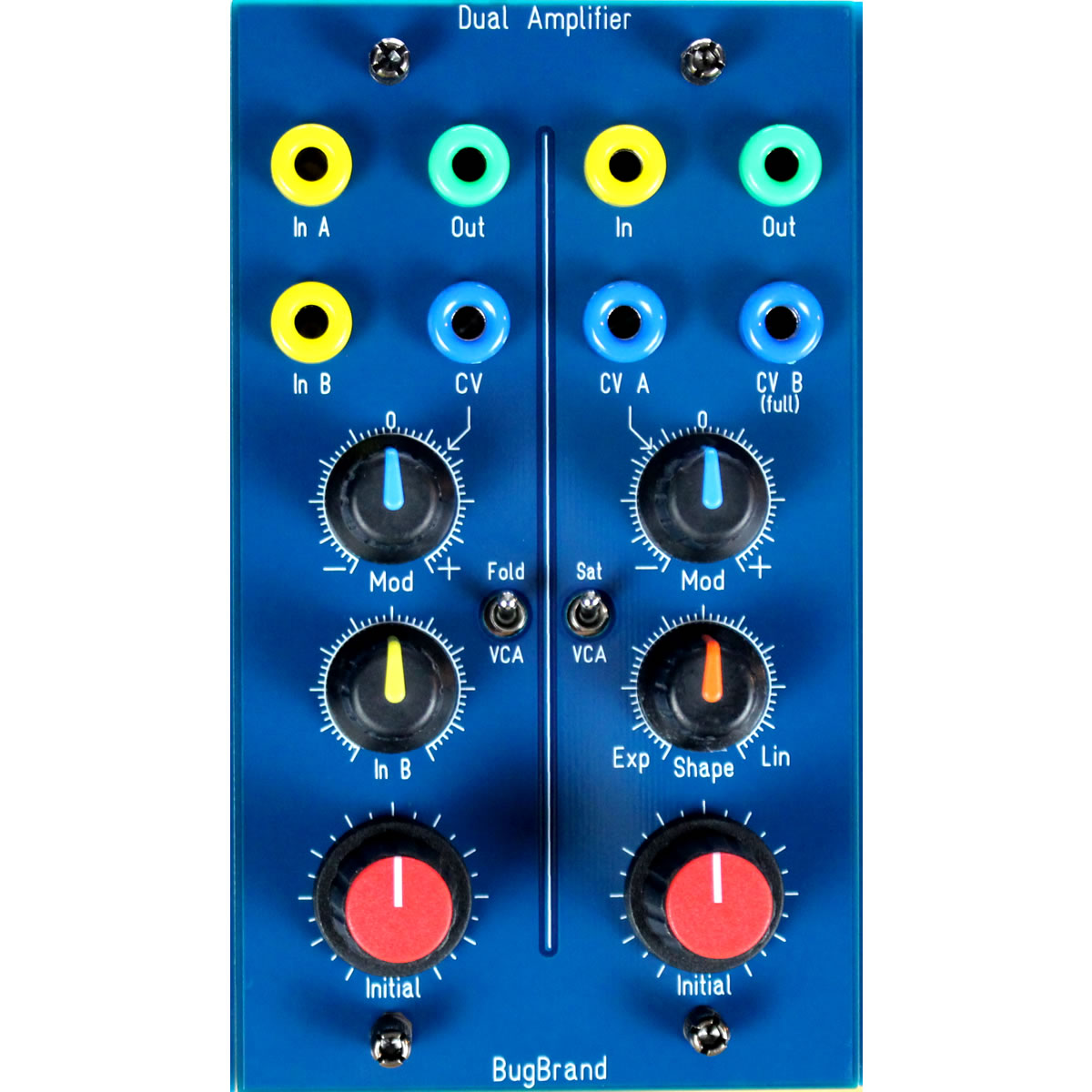

The Dual Amplifier is made up of two Voltage Controlled Amplifiers (VCAs), paired with two types of waveshaping.
The left-hand Amp provides Wave-Folding which adds extra harmonics to signals, along with a second signal input.
The right-hand Amp has Zener Diode Saturation which gives soft-clipping, adding weight to signals. It also allows the VCA response to be swept from Exponential to Linear.
The VCAs are DC-coupled with gain up to unity.
See the SynthVoice PDF Manual for module details & functions.
Current: +ve 60mA, -ve 60mA
